Low Cost I2C/SPI Digital Pressure Sensor for water air oil test

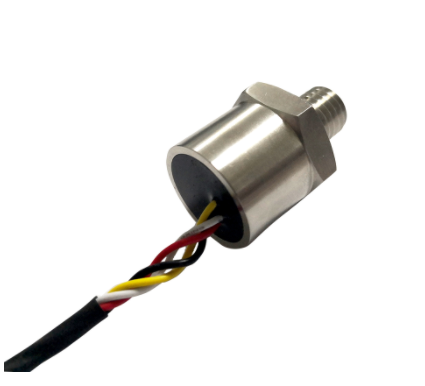

PS19 pressure sensorhigh-quality silicon piezoresistive sensor chip. The piezoresistive sensor chip is packaged in a fluid-filled cylindrical cavity and isolated from measured media by a stainless steel diaphragm and housing. The output of NPS19A can be configured to 10%~90%Vs ratiometric,4~20mA, I2C by integrated the electronics.Integrated the electronicsis used for temperature compensation, offset correction.
Amplified output (ASIC inside)
I²C
0.5 to 4.5V
CE certificate
Features
- 100mbar to 100bar (1.45psi to 1450psi )
- Absolute, gauge and sealed gauge
- ±0.5% static accuracy
- Calibrated and temperature compensated
- Rugged 316L stainless steel isolated package
- Piezoresistive sensor design

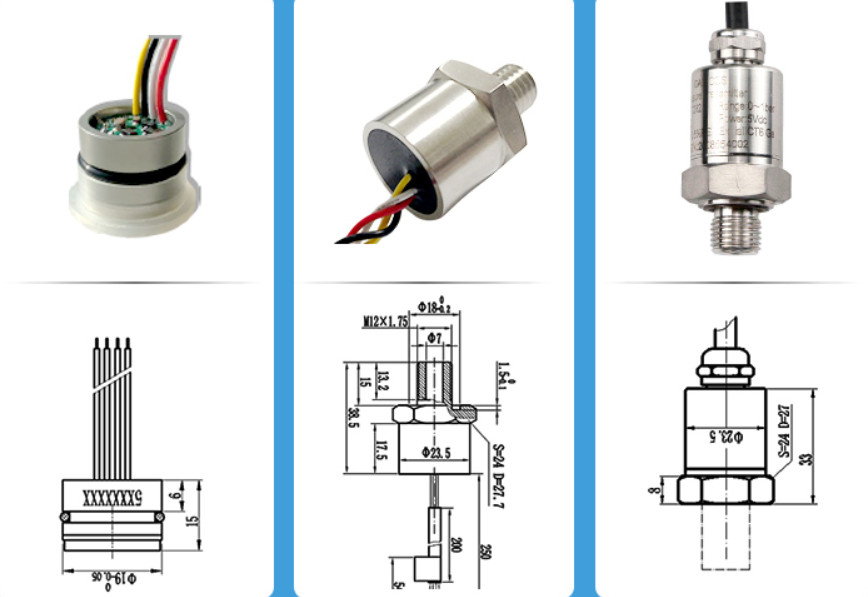

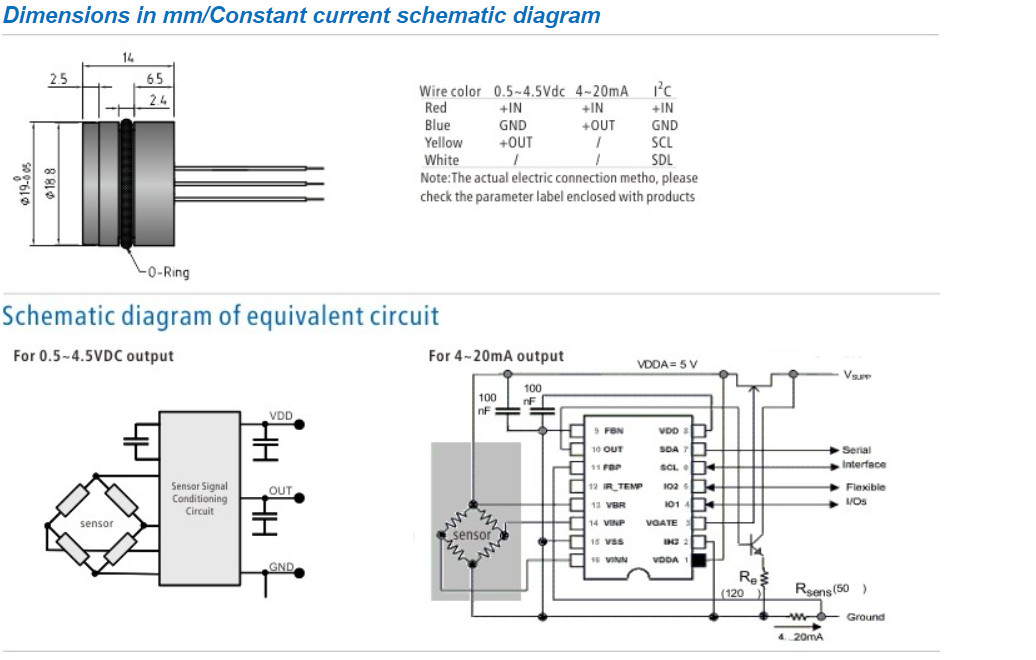

- 0.5~4.5Vdc(ratiometric),I2C interface
- ASIC Calibrated
- Solid state, high reliability
- Custom configurations and other pressure ranges available. Please consult the factory.
Applications
- Process control systems
- Refrigeration and HVAC controls
- Hydraulic systems and valve
- Pharmaceutical engineering
- Level measurement
- Ship and marine systems
Speifications
| Parameter | Value | Units |
| General | Pressure Range | 0-0.1,...,100 | bar |
| Overpressure | 1.5xFS | bar |
| Environmental | Operating Temp.Range | -20 to +80 | °C |
| Compensated Temp.Range | 0 to 70 | °C |
| Vibration | 10 | g(20 to 2000Hz) |
| Shock | 100 | g(10ms) |
| Cycles | 10x106 | cycles |
| Electrical @25°C(77°F) | Analog signal Analog signal Digital signal | 0.5~4.5 4~20 I2C | VDC@5VDC mA@24VDC @3.3VDC |
| Insulation Resistance | 100 | MΩ@50VDC |
| Physical Specifications | Media Compatibility | All media compatible with 316L SS | |
| Housing | 316L stainless steel | |
| Diaphragm | 316L stainless steel | |
| Seal Ring | Viton or NBR | |
| Oil Filling | Silicone oil | |
| Net Weight | Approx.14g | |
| Performance1 | Accuracy2 | ±0.25[typ.] | % FSO |
| Temp. Coeff– Zero3 | ±0.75[typ.] | % FSO |
| Temp. Coeff– Span3 | ±0.75[typ.] | % FSO |
| Long-Term Stability | ±0.3[typ.] | % FSO |
PS19pressure sensor is widely used in:
Process control system Air compressor Refrigeration system
CNGSNG gas station Natural gas HVAC
Oil pumpdrilling Food industry Chemical industry
Hydraulic control system pump&water system Others
