Signal 4~20mA IP68 Submersible Pressure Switch For Hydraulic Monitoring

Name: Signal 420mA IP68 Submersible Pressure Switch For Hydraulic Monitoring
Brand: Atech
Price: 1 USD

Brand Name : Atech

Model Number : PL302

Certification : CE

Place of Origin : China

MOQ : 1pc

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 pcs month

Delivery Time : 5-8 work days

Packaging Details : standard export packing ,carton packing, water proof, shock resistance or according to customer's requirements.

product name : 150%FS Submersible Pressure Switch Long Lifespan 0~60°C

pressure medium : liquid compatible stainless steel

overload pressure : 150%FS

output signal : 4~20mA, 0.5 ~4.5V, 0~5V, 0~10V

preciseness : 0.5%FS (standard)

compensated temperature range : 0~60°c

long term stability : 0.2%FS/year

Power supply : 24VDC ,12VDC

Contact Now

150%FS Submersible Pressure Switch Long Lifespan 0~60°C

Feature

● Wide range application

● Long service life

● Diffused silicon oil-filed sensor cell

● Reinforcement cables optional

● Intrinsically sate ,explosion proof

Applications

● Hydraulic monitoring

● Liquid measuring for petroleum ,metallurgy
● sewage treatment
● fuel tank level monitoring
● water-saving irrigation
● circulating fluid monitoring

Description

Type level sensor is a pressure sensor measuring the liquid level, based on the principle proportional to the height of the hydrostatic liquid measured using isolated diffused silicon capacitive pressure sensing element or ceramic-sensitive sensor, the static pressure is converted to electrical signals, and then after the temperature compensation and linearity correction, converted into a standard electrical signal is generally used in petrochemical, metallurgical, power, pharmaceuticals, water supply and drainage, of various media level measurement systems and environmental industries.

Speifications

pressure medium	liquid compatible stainless steel
pressure ranges	0~0.5 m H2O...200 m H2O
overload pressure	150%FS
output signal	4~20mA, 0.4 ~4.5V, 0~10V,
accuracy	0.5%FS (standard)
load resistance	RL = (U-10)/0.02(Ω) (4~20mA current output), ＞20KΩ (voltage output)
long term stability	0.2%FS/year
supply voltage	24VDC ,12VDC
compensated temperature range	0~60°c
operating temperature range	0~+100°c
storage temperature range	-40~+125°c
temperature coefficient of zero	1.5%FS (Max)
temperature coefficient of span	1.5%FS (Max)
insulation resistance	100MΩ@ 250VDC

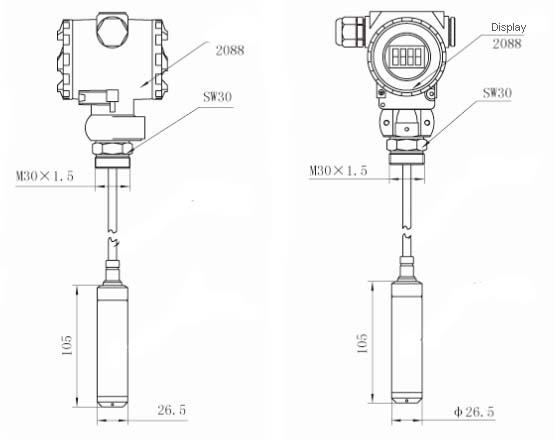

Pressure connection	screw thread, throw-in type
Protection grade	IP68
material of wetted part and housing	1Cr18Ni9Ti
material of pressure membrane	316L
Response time	10ms
